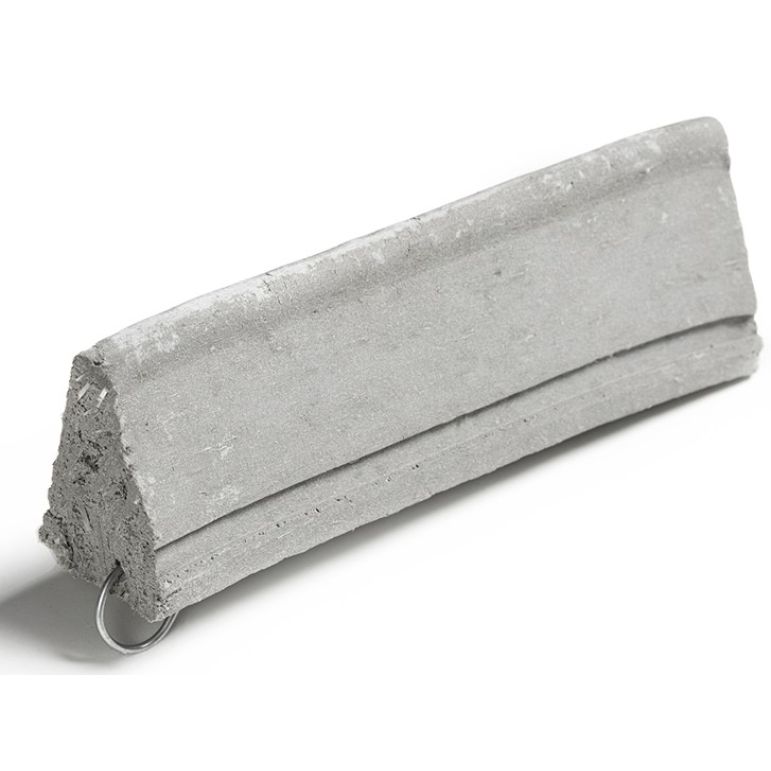

Concrete Triangular Spacer with Clip

A Strong Extruded Fibre Reinforced Concrete Spacer

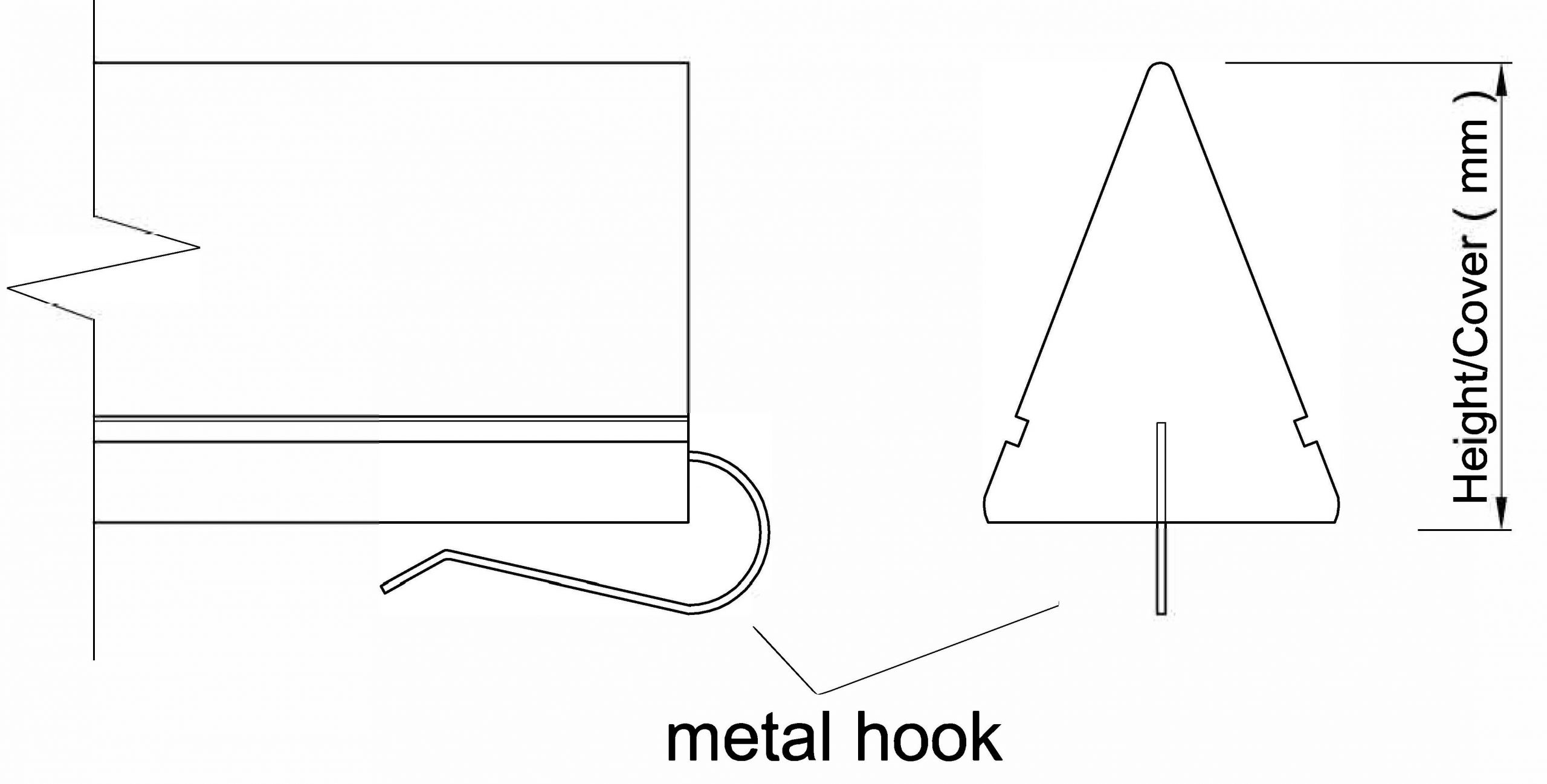

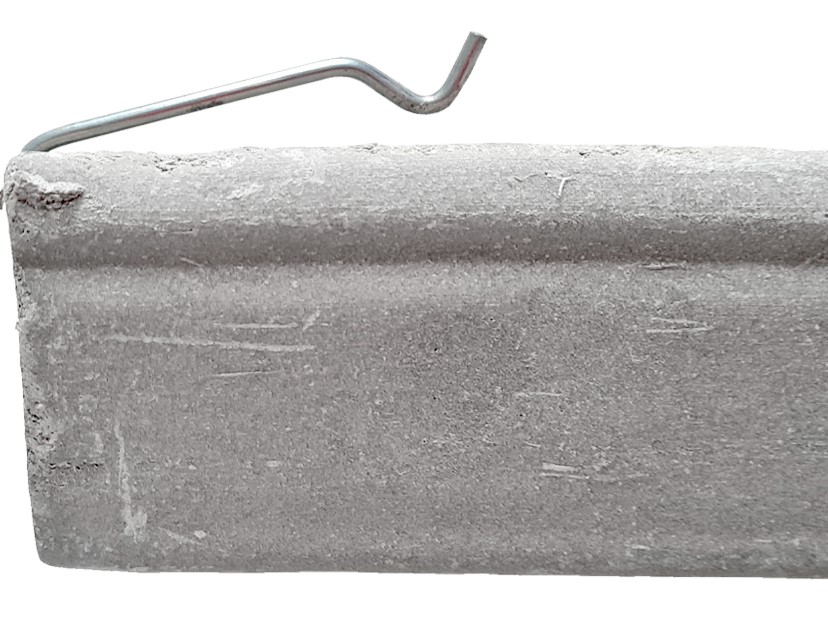

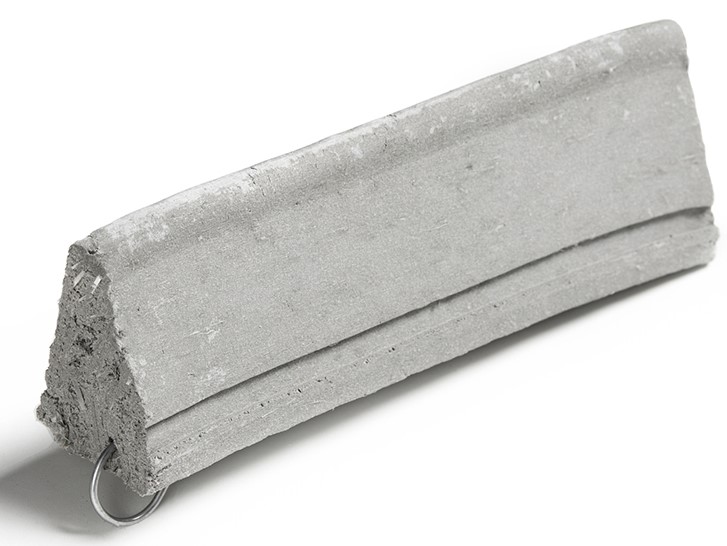

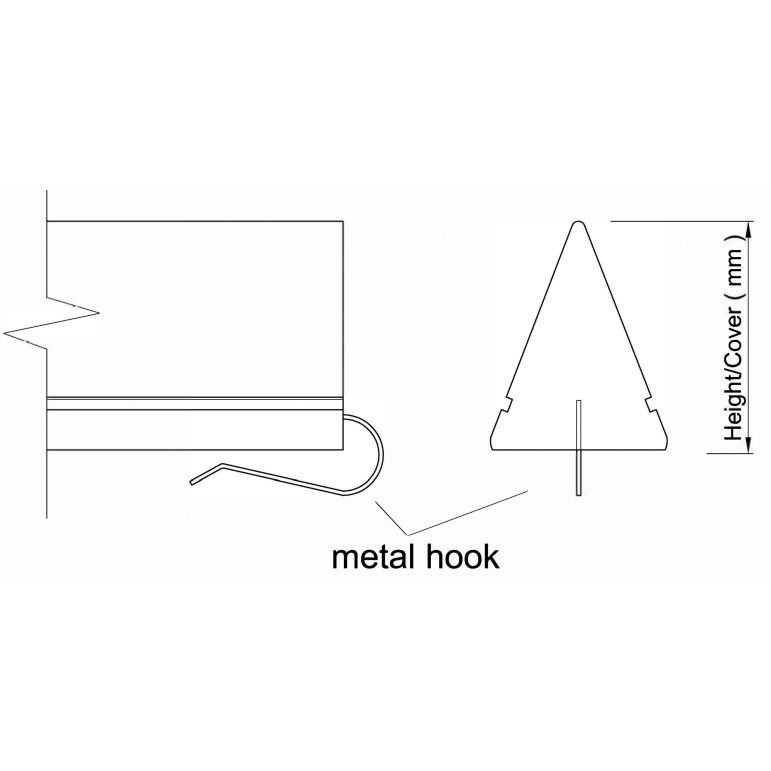

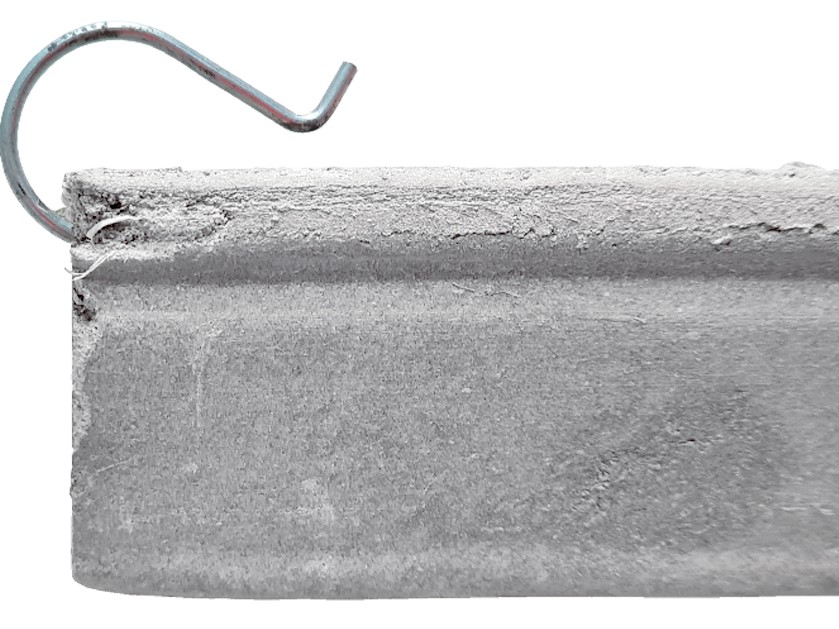

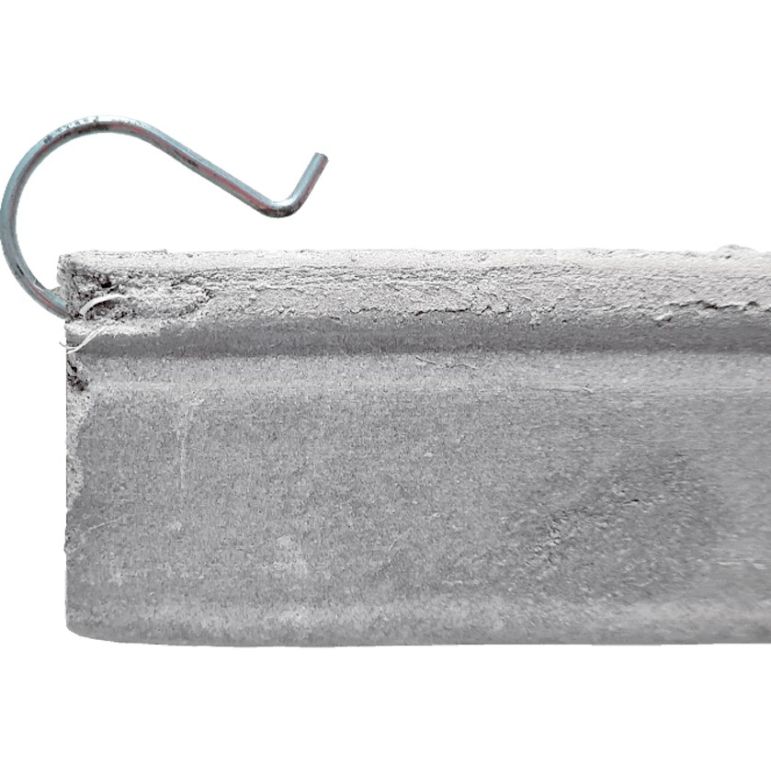

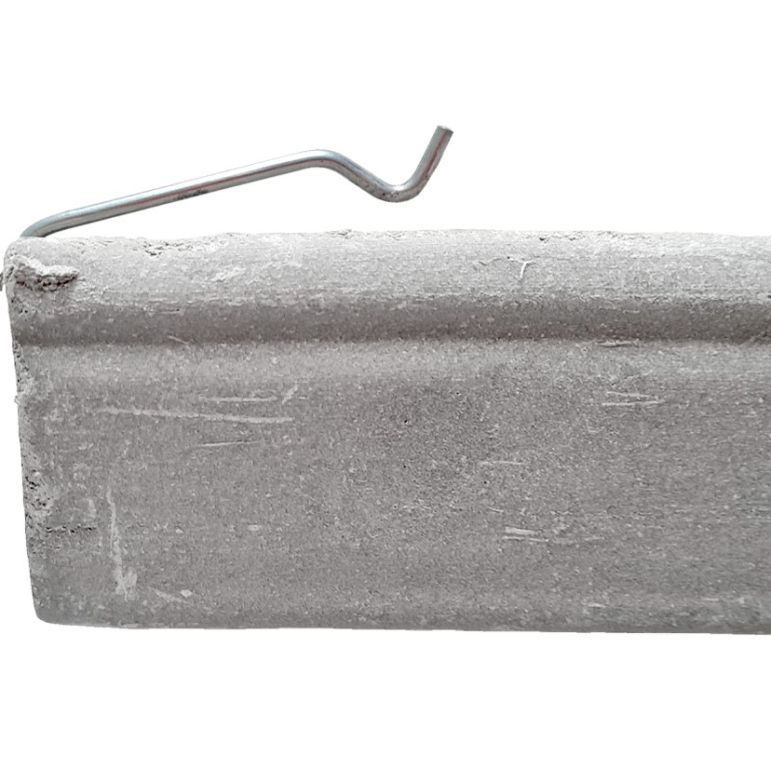

A very strong concrete spacer designed to fix to vertical reinforcement applications by simply hooking on the mesh or loose reinforcement bar. This spacer is available in lengths of 180mm or 330mm. Other lengths can be produced and supplied with or without a metal hook.

Bluebay Extruded Fibre Reinforced Concrete Spacers ensure that the specified concrete cover to the reinforcement for structures and structural elements is achieved, both before and during concreting. These spacers help to guarantee the durability of all structures. Spacers made of fibre concrete have an optimum material compatibility with in-situ concrete. Bluebay spacers are produced with strength and durability properties to match most site and precast concrete applications. The outstanding material properties of fibre reinforced concrete include:

• High compressive strength, accurate dimensional tolerances, excellent  chemical resistance
• Excellent bond with concrete, no hairline cracks between the spacer and concrete, suitable for impermeable concrete
• Fire resistant to the highest requirements specified in EN13501-1:2002 – Class 1A
• The performance meets the requirements of BS 7973 (British Standard for Spacers)

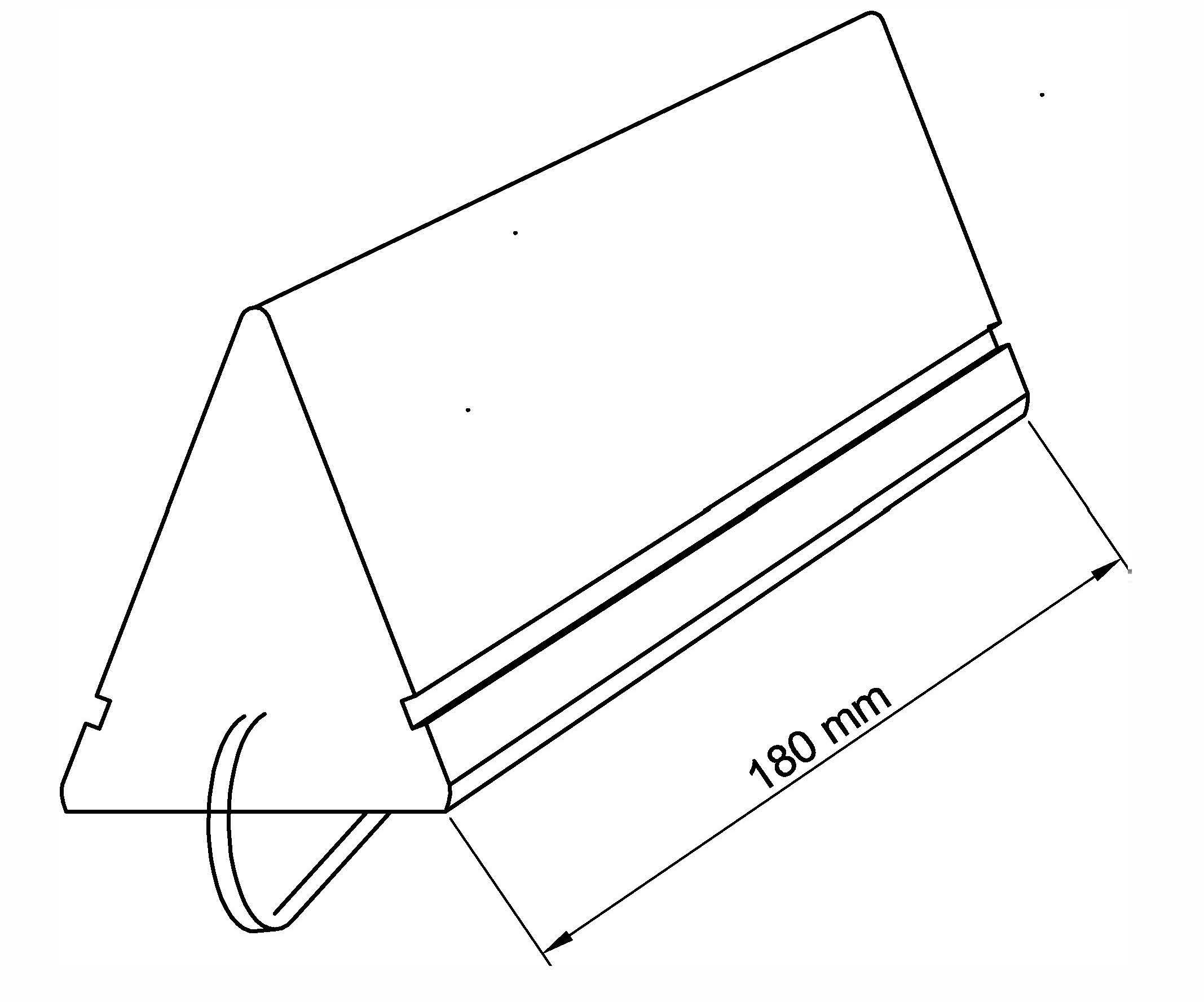

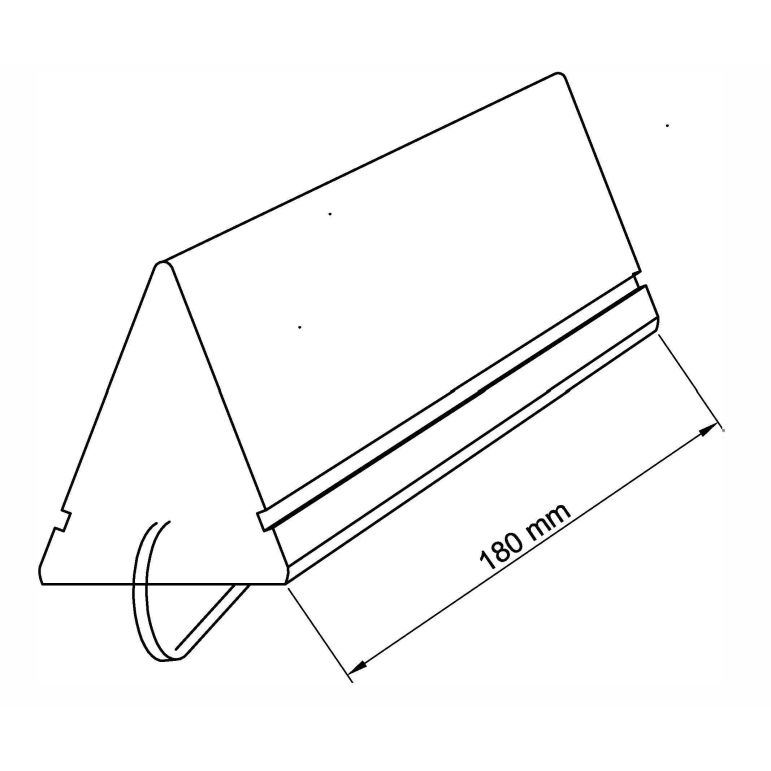

Available in lengths: 180 or 330mm  (Other lengths available)

Cover sizes of :- 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm.
