Concrete Triple Cover Block Spacer

Reinforcement & Formwork AccessoriesBack to Products

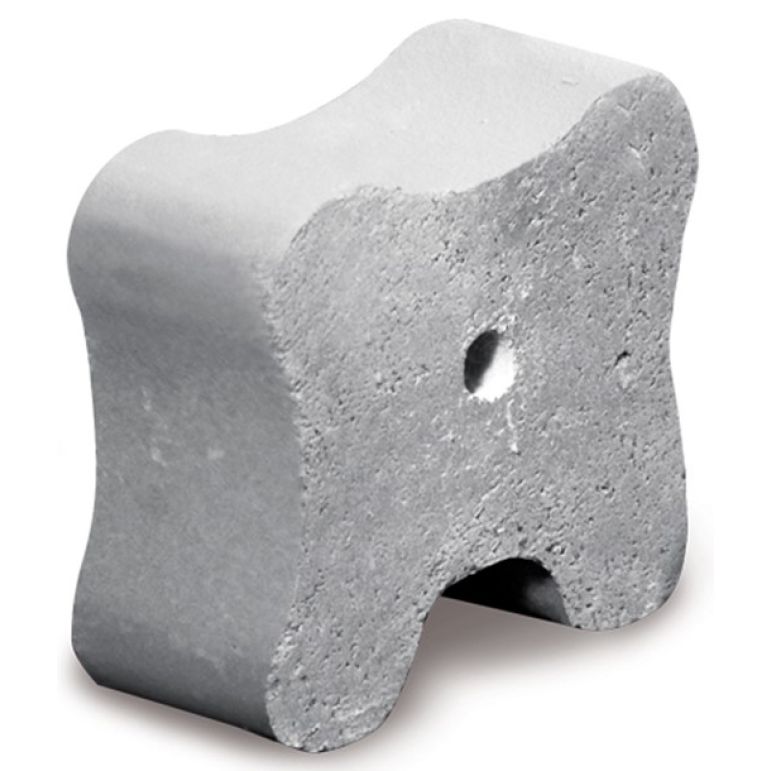

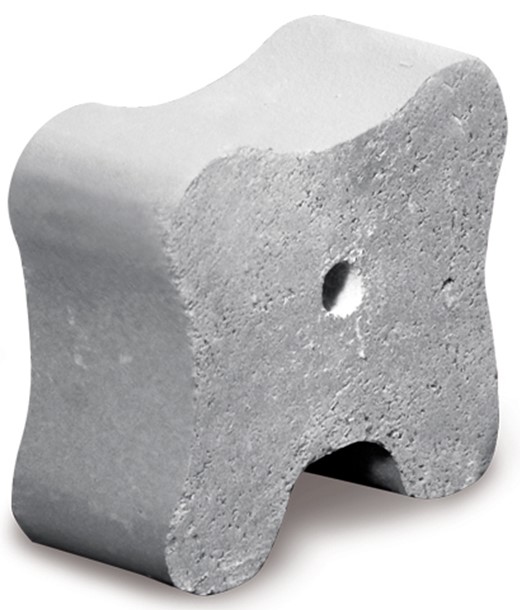

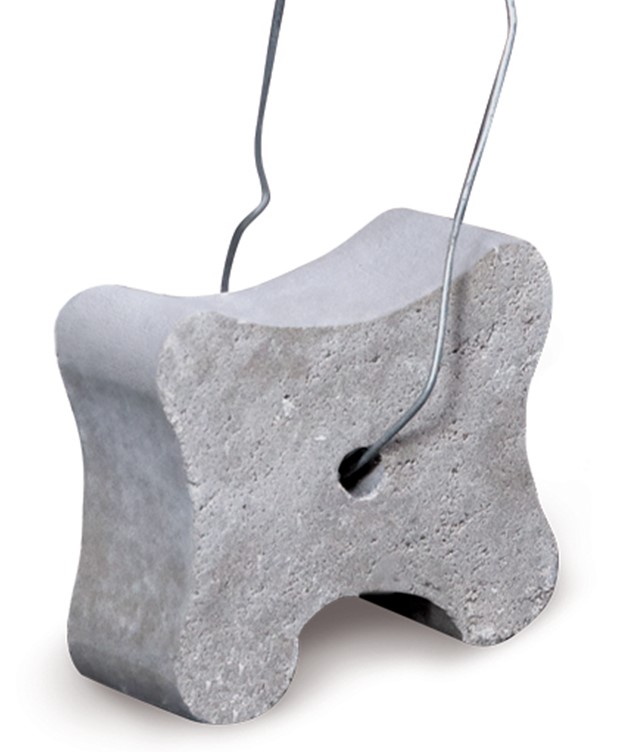

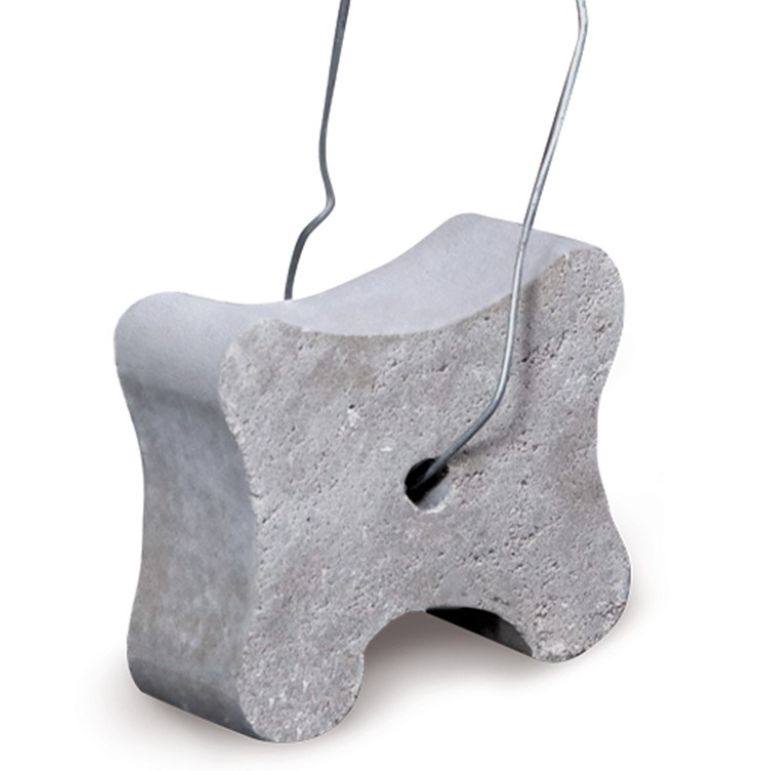

High Strength Triple Cover Block Spacer

Bluebay Extruded Fibre Reinforced Concrete Spacers ensure that the specified concrete cover to the reinforcement for structures and structural elements is achieved, both before and during concreting. These spacers help to guarantee the durability of all structures.

  • Bluebay Concrete Triple Cover Block Spacers are manufactured from extruded fibrous concrete with a minimum concrete Strength of 50N/mm2.
  • Manufactured in accordance with BS7973-1 :2001.
  • The Trapezoidal Concave Spacers have a high tensile strength and stability when they are installed.
  • Bluebay Extruded Fibre Reinforced Concrete Spacers ensure that the specified concrete cover to the reinforcement for structures and structural elements is achieved, both before and during concreting.
  • These spacers help to guarantee the durability of all structures.
  • Spacers made of fibre
  • Concrete have an optimum material compatibility with in-situ concrete.
  • Bluebay spacers are produced with strength and durability properties to match most site and precast concrete applications.
  • Cover Sizes :  20/25/30mm, 35/40/50mm, 45/55/60mm, 50/60/70mm



Technical Information

  • High compressive strength, accurate dimensional tolerances, no deformation with temperature fluctuations, excellent physical and chemical resistance
  • Excellent bond with concrete, no hairline cracks between the spacer and concrete, suitable for impermeable concrete
  • Fire resistant to the highest requirements specified in EN13501-1:2002 - Class 1A
  • The performance of Bluebay spacers meets the requirements of BS 7973 (British Standard for Spacers) and of the Concrete Best Practice Guide produced by the European Concrete Societies Network.
Product CodeCover SizeBag Quantity
F20104010
Cover Size: 20/25/30MM
Bag Quantity: 250
20/25/30MM250
F20104005
Cover Size: 35/40/50MM
Bag Quantity: 125
35/40/50MM125
F20104025
Cover Size: 45/55/60MM
Bag Quantity: 125
45/55/60MM125
F20104050
Cover Size: 50/60/70MM
Bag Quantity: 125
50/60/70MM125
