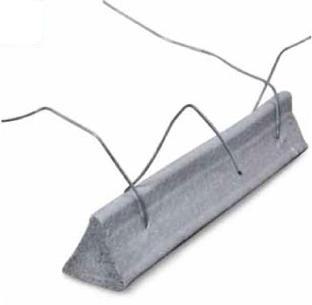

Concrete Triangle Concave Spacer

A Strong Extruded Fibre Reinforced Concrete Spacer

A very strong concrete fibre reinforced triangle concave spacer designed to support vertical or curved reinforcement steel to the required cover in concrete slabs. Available in two lengths of 180mm and 330mm.The spacer offers great stability thanks to the connection to the steelwork by means of soft black annealed or stainless steel wire. These spacers can be produced with or without wires.

Bluebay Extruded Fibre Reinforced Concrete Spacers ensure that the specified concrete cover to the reinforcement for structures and structural elements is achieved, both before and during concreting. These spacers help to guarantee the durability of all structures. Spacers made of fibre concrete have an optimum material compatibility with in-situ concrete. Bluebay spacers are produced with strength and durability properties to match most site and precast concrete applications. The outstanding material properties of fibre reinforced concrete include:

• High compressive strength, accurate dimensional tolerances, excellent  chemical resistance
• Excellent bond with concrete, no hairline cracks between the spacer and concrete, suitable for impermeable concrete
• Fire resistant to the highest requirements specified in EN13501-1:2002 – Class 1A
• The performance meets the requirements of BS 7973 (British Standard for Spacers)

Available in lengths: 180mm & 330m (with or without wires) other lengths available

Cover sizes of :- 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 75mm
