Dywidag Fix Anchors

Part of the Dywidag range of Anchoring in Concrete

Dywidag Fix Anchors are used for bracings in concrete. Since they can be nailed to the formwork skin at any point using the nail plug in the PE Foot or in the closing plug, the point is independent of existing anchor holes, and the formwork skin must not be perforated.

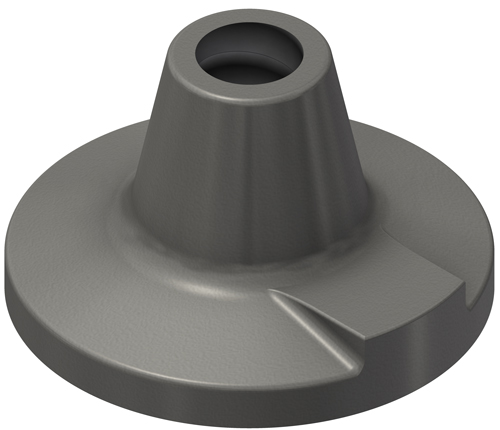

Round Fix Anchors (20+26.5mm) should be installed with the flat side facing downwards in order to reach higher pull-out values with a larger pull-out cone. The actual pull-out values depend on many factors, which is why we recommend to always carry out pull-out tests on site.

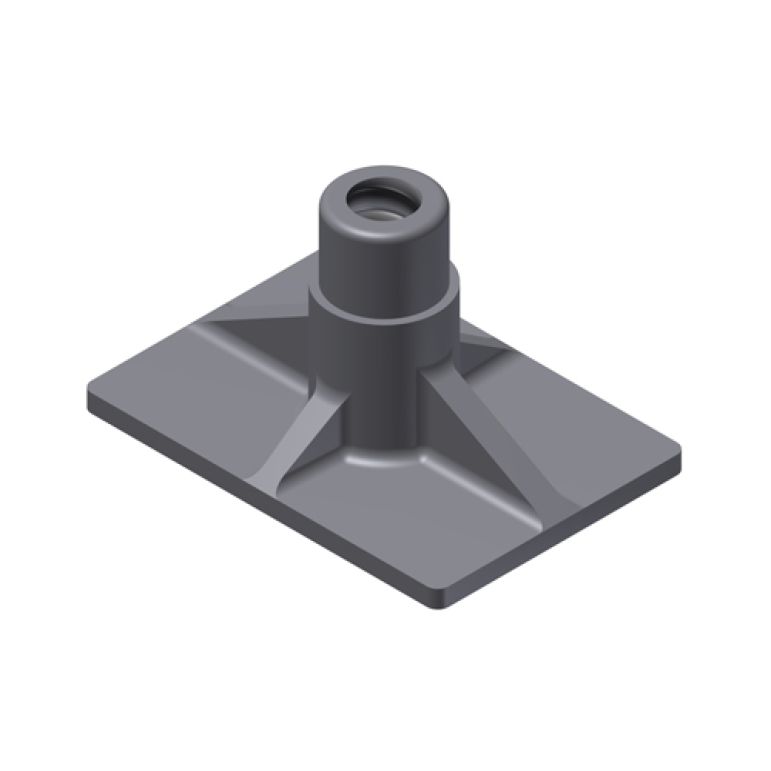

• 15 F3074 : 100mm x 70mm

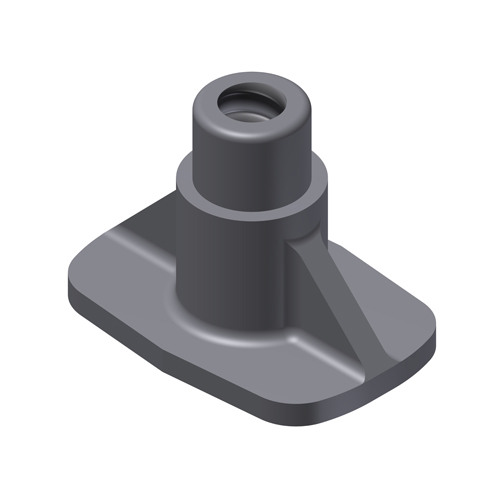

• 15 F3174 : 80mm x 55mm
