ARC T-Barrier (Metal Frame)

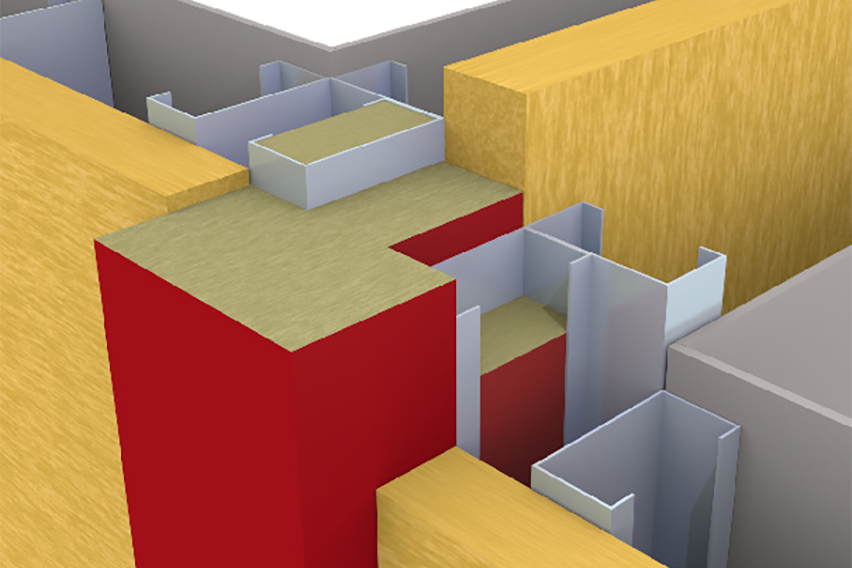

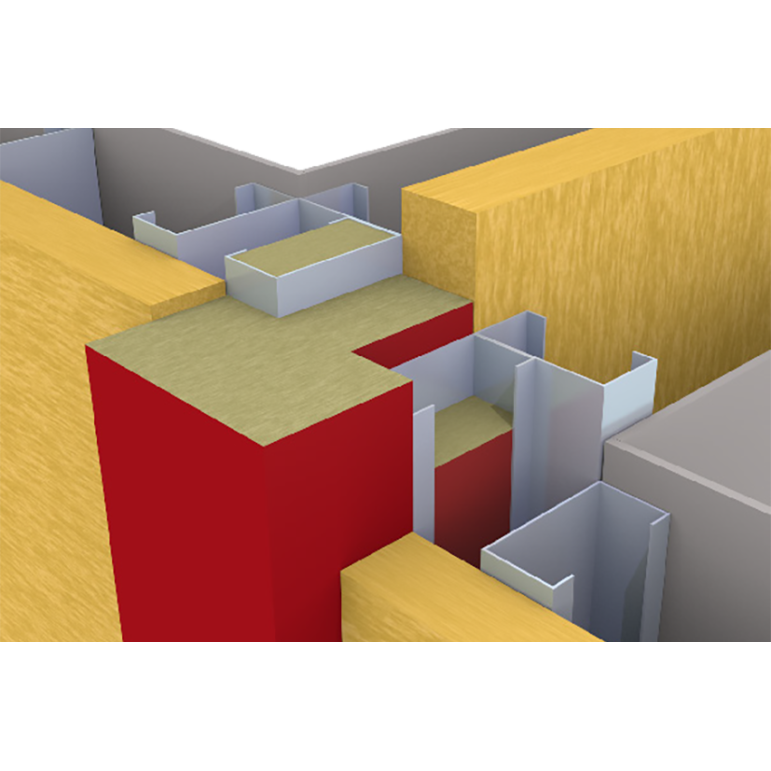

ARC T-Barrier Metal Frame is a 3-piece system that fits into and around the metal ‘C’ sections to offer up to 4 hours fire integrity in a metal frame construction where the external leaf is brickwork.
- Up to 4 hours fire integrity
- 3-piece system fire stops at the junction between the party wall and external wall
- Excellent acoustic properties
- Up to 150mm external cavity width
- Polythene encapsulated for on-site protection
| ARC Metal Frame Barrier | ||
| Cavity Width(s) | Length | Frame Fire Integrity |
| 50mm - 150mm | 1200mm | 4 hrs |
| Data Sheets | |
| ARC T-Barrier (Metal Frame) Data Sheet | Download |
