Vista Masonry Support System

The Vista Masonry Support System can all be customised to suit the requirements of your project, ensuring the best performance and the most cost effective solution, there are a wide range of fixings and ancillaries to support this system.

There are 4 main components to the system which comprise:
VEAS Masonry Support Angle
VEIB & VEIBS Individual Bracket Masonry Support
VESS Masonry Support System
VESB Stone Support Brackets

VEAS Masonry Support Angle

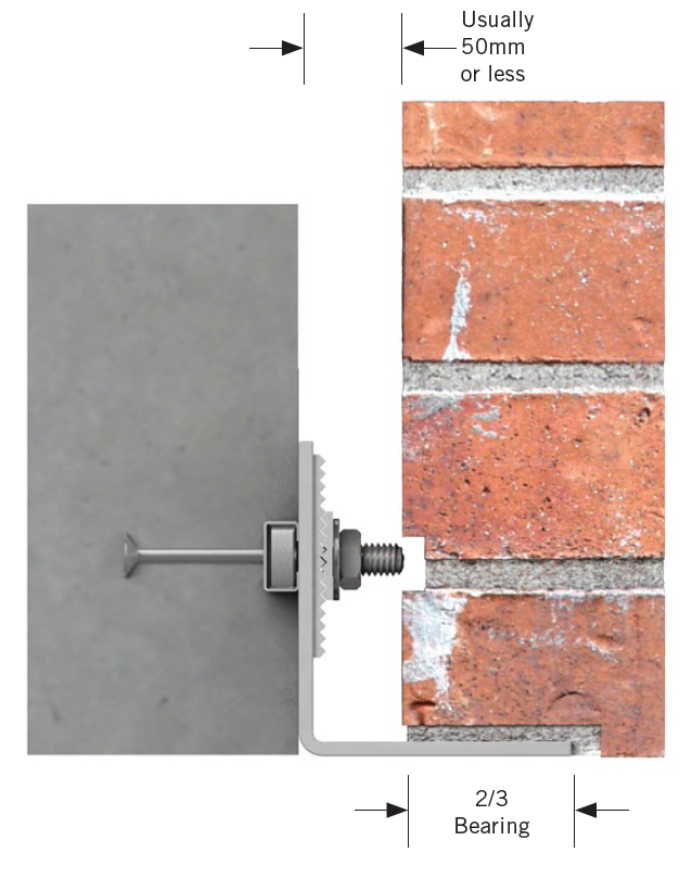

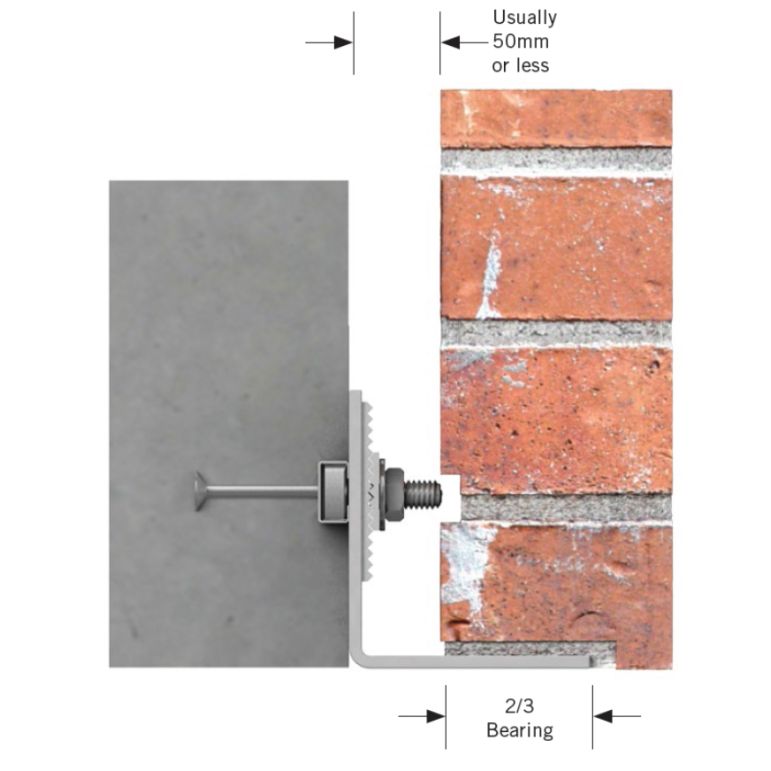

Vista Masonry Support Angles are suitable for applications where the cavity does not exceed 50mm or where the underside of the masonry
panel is exposed and the cavity needs to be closed. Support angles can be designed for walls with cavities larger than 50mm but the VESS Support System is usually a more economical option. Vista design each system separately ensuring the most cost effective solution is achieved for any given criteria. The angle design itself is dependent on load, cavity, fixing type and the support level position

VEIB & VEIBS Individual Bracket Masonry Support

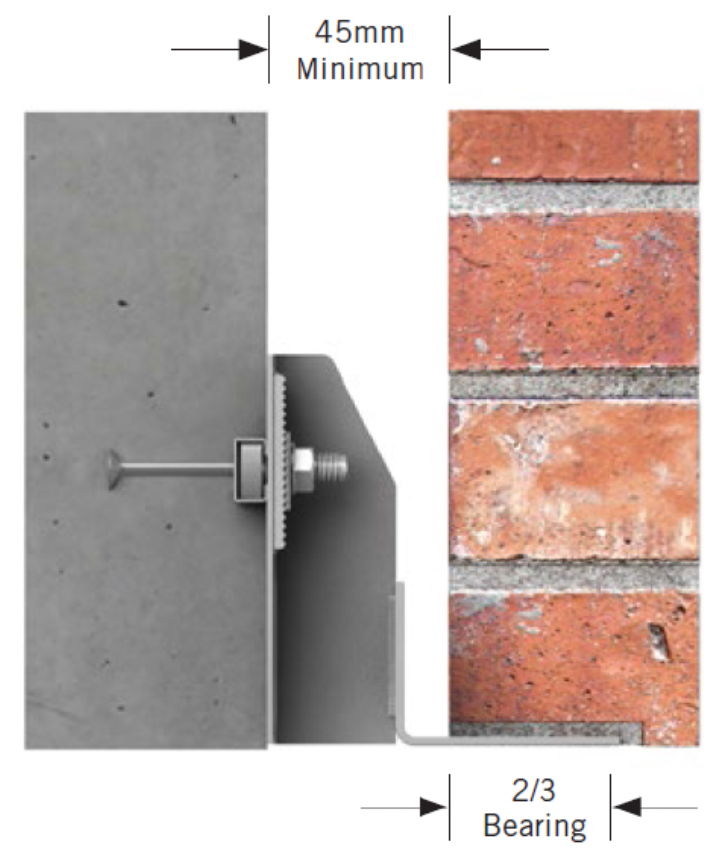

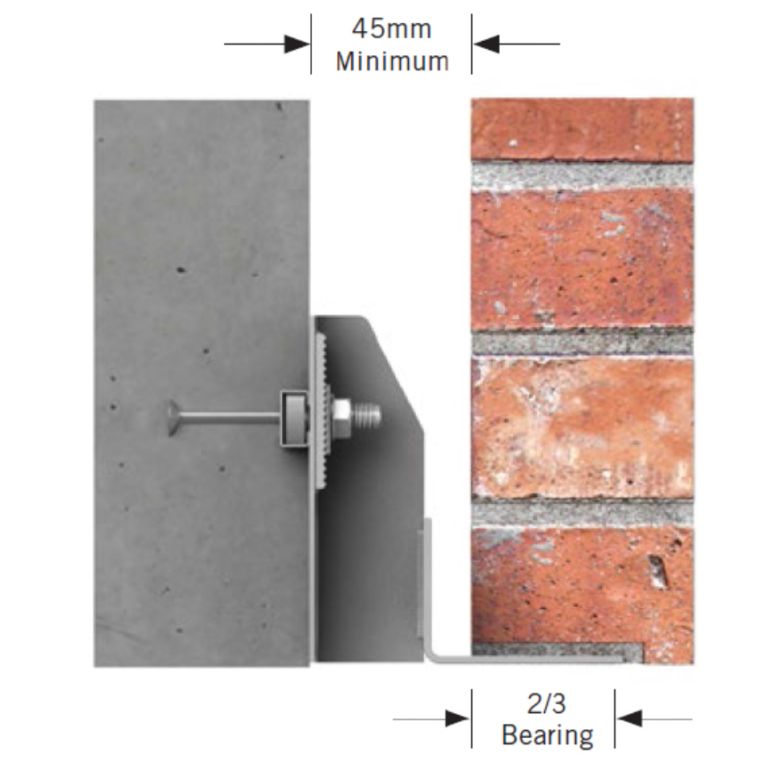

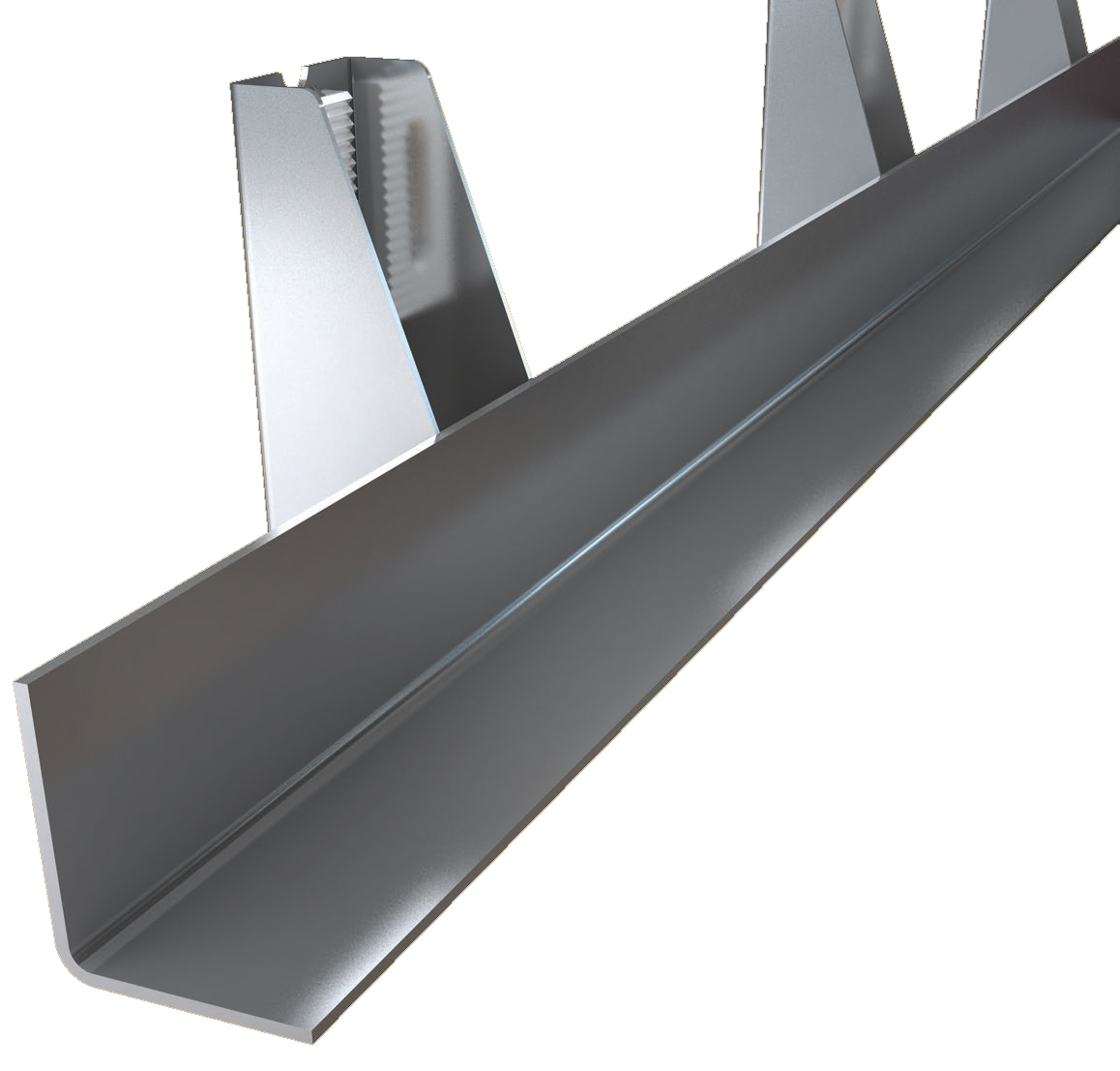

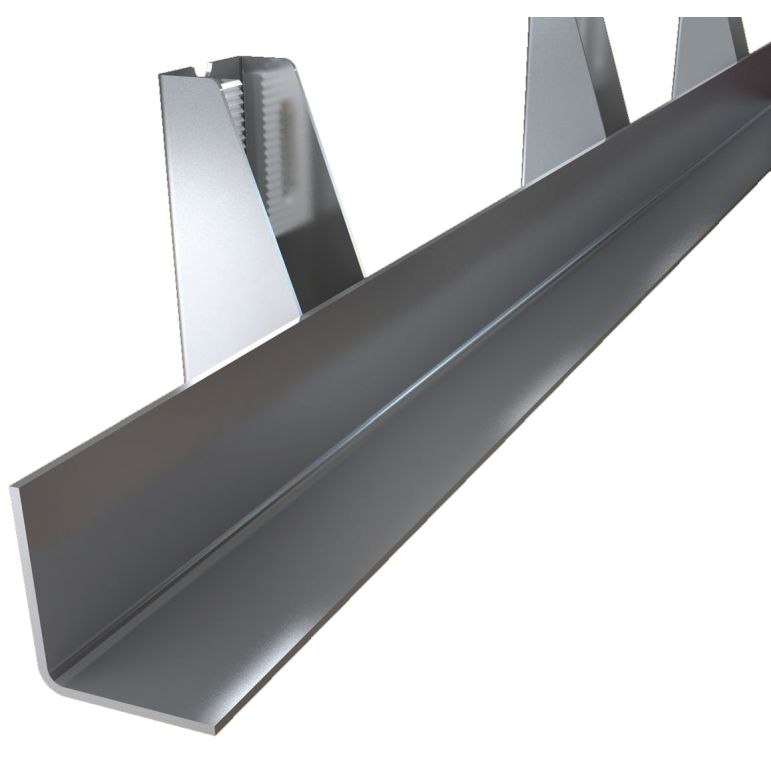

Vista Masonry Support Systems comprise of brackets welded to continuous angles at pre-designated fixing centres. They are suitable for cavities in excess of 45mm. Support systems are ‘tailor made’ to suit every individual application ensuring cost effective design solutions for every masonry support requirement. Adjustment – The brackets offer up to +/- 30mm vertical adjustment by utilising an 18 x 70 vertical slot in conjunction with a welded serrated pad. The welded serrated pad stops any potential slip.

VESS Masonry Support System

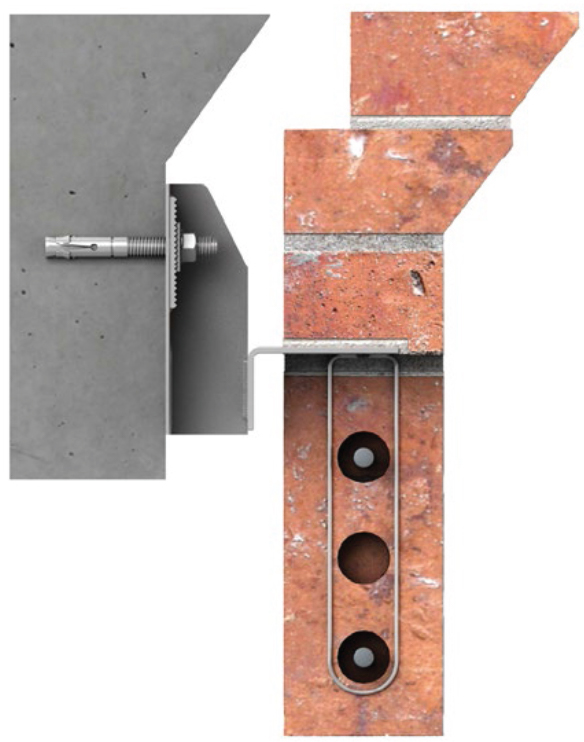

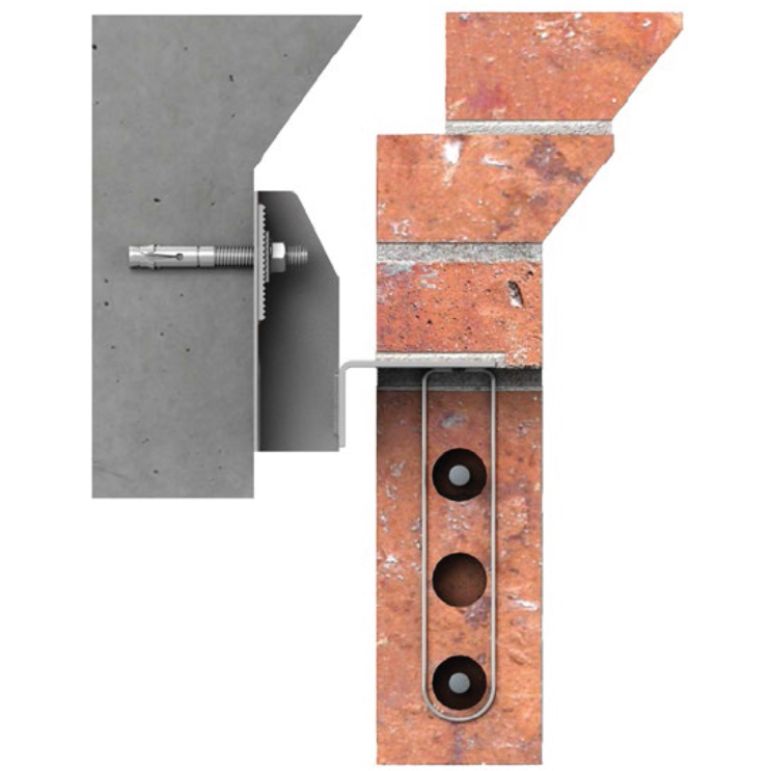

Vista Individual Masonry Support Brackets are generally used when use of continuous support is difficult to achieve such as curved brickwork or where masonry is supported from above such as soldier courses. Individual brackets are designed for each specific application ensuring the most cost effective solution for any given loading criteria. Adjustment – The use of welded serrated pads and punched vertical slots on both the angle and system type brackets offers up to +/- 30mm vertical adjustment.

VESB Stone Support Brackets
Wherever possible the recommendations in BS8298-1,-2,-3,-4:2010 “Code of Practice for the Design and Installation of Natural Stone Cladding and Lining” are used as the basis for our design. The document discusses recommendations on all aspects of natural stone support ranging from materials to fixing positions and required bearings. In the case of cast stone units, the fixing options are increased as cast-in fixings may also be considered.

Adjustment – The use of welded serrated pads and punched vertical slots on both the angle and brackets offers up to +/- 30mm vertical adjustment.
